- 4M-N DVR 4CH/8CH/16CH
- Category:
Video Recorder--5 IN 1 DVR
Support H.264+（Quasi H.265） encoding, ultra-low bitrates, compatible with H.264 surroundings;Support VGA, HDMI HD output simultaneously;Support ONVIF;
- Previous:No record Next:Model:HS-NH-3804J
Detailed introduction:
Support H.264+（Quasi H.265） encoding, ultra-low bitrates, compatible with H.264 surroundings;
Support VGA, HDMI HD output simultaneously;
Support ONVIF; access third party;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support web, CMS, center platform management software MYEYE, provide SDK development;
Support various mobile monitoring (ios, android);
Remote Access, With DNS (ARSP),easy to monitor remotely;
Support AHD/TVI/CVI/CVBS/IP five signals;
Support XVI，image quality is better;
Support intelligent video analysis;
| Model | HS-MN-3804E | HS-MN-3308E | HS-MN-4516E | |
| System | Main processor | Hi3520D V300 | Hi3521A V100 | Hi3531A V100 |
| Video | Codec | H.264+/H.264 | ||
| Monitor quality | VGA、HDMI：HD | |||
| Preview ability | 4*4M-N@15fps(AHD)/4*1080N (5 in 1) | 8*4M-N@8fps(AHD)/8*1080N (5 in 1) | 16*4M-N@8fps(AHD)/16*1080N (5 in 1) | |
| Encode ability | 4*4M-N@15fps (AHD)/ 4*1080N (5 in 1) | 8*4M-N@8fps (AHD)/ 8*1080N@12fps (5 in 1) | 16*4M-N@8fps(AHD)/ 16*1080N@12fps(5 in 1)/16*960H | |
| Decode ability | 2*4M-N@15fps (AHD)/4*1080N (5 in 1) | 8*4M-N@8fps (AHD)/8*1080N@12fps (5 in 1) | 16*4M-N@6fps(AHD)/ 16*1080N@12fps(5 in 1)/16*960H | |
| Multi-mode input | analog:4*4M-N;4*1080N; | analog:8*4M-N;4*1080P; | analog:16*4M-N;8*1080N;16*960H; | |
| hybrid: 2*1080N(analog)+2*960P(network); | hybrid: 2*1080P(analog)+2*1080P(network); | hybrid: 8*1080N(analog)+8*960P(network); | ||
| network:8*1080P;12*960P;8*720P;1*1080P; | 4*1080N(analog)+4*960P(network); | network:8*1080P+8*960P;4*4M;4*5M; | ||
| network:16*1080P;9*1080P;16*960P;4*5M; | ||||
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |||
| Audio | Audio compression | G.711A | ||
| Intercom | support | |||
| Record | Record mode | manual>alarm>motion detection>timing | ||
| Search mode | Search by time, calendar, event, channel | |||
| Video storage | HDD, network | |||
| Backup mode | Network, USB hard disk, USB burner, SATA burner | |||

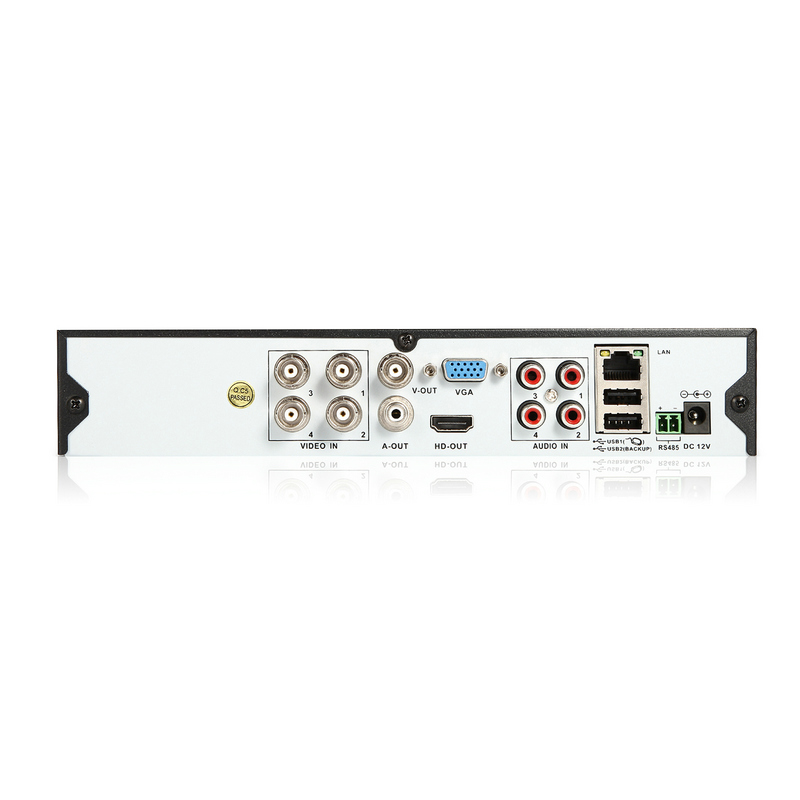

| External Interface | Video input | 4ch BNC | 8ch BNC | 16ch BNC |
| Video output | 1ch VGA,1ch HDMI | |||
| Audio I/O | 4./1 | 4(8)/1 | 2(6)/1 | |
| Alarm I/O | 0(4)/0(1) | |||
| Network | RJ45 10M/100M self-adaption | |||
| Extension interface | 2* USB 2.0 ports(3G、WIFI can be extended); 1*RS485,Support kinds of PTZ protocols; | |||
| HDD | 2*SATA ports (Max 8TB/per) | |||
| General | Power supply | 12V/2A 12V/4A | ||
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa | |||
| Dimension | 200mm*78mm | 200mm*78mm | 235mm*90mm | |
| Weight | 160g | 186g | 284g | |
